Paper Pulp Thermoforming Machine

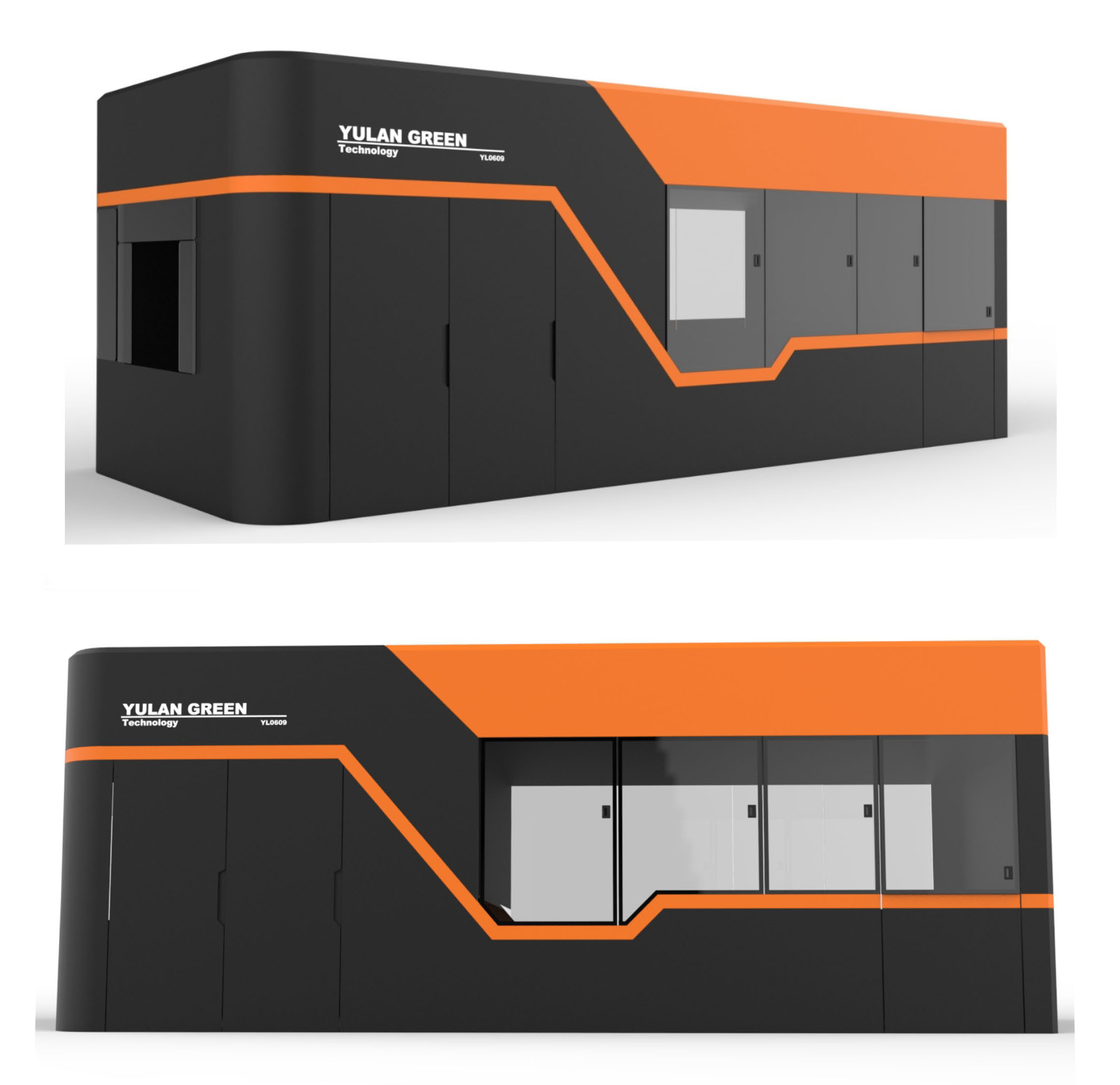

  Circular Thermoforming Machine (5-step, With automatic trimming device) 600mm x 900mm (YL0609-R-5)


http://www.yulan.com.tw/SliderImgFolder/2_0429 草圖提案-R5.jpg

download    Image
MODEL(General／CE certification)YL0609-R-5-001-0／YL0609-R-5-000-1(CE)
Size of Machine7280mm x 3000mm x 3000mm
Weight20,000kg
Size of Mold620mm x 900mm
Max Height of Formed Products170mm

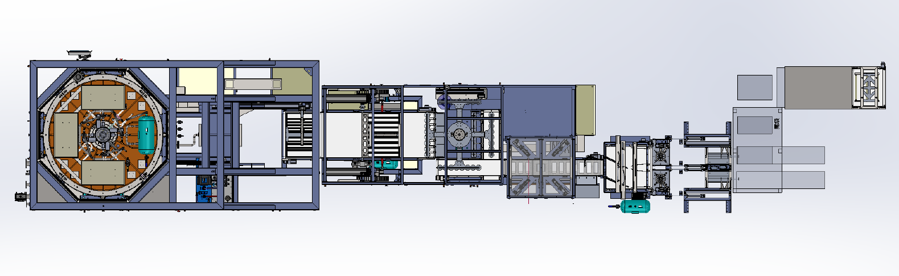

  Automatic Production Line-18oz cup(No PE film)


http://www.yulan.com.tw/SliderImgFolder/4_圖片1.png



  Automatic Production Line-780ml bowl(No PE film)


http://www.yulan.com.tw/SliderImgFolder/2_圖片1.png

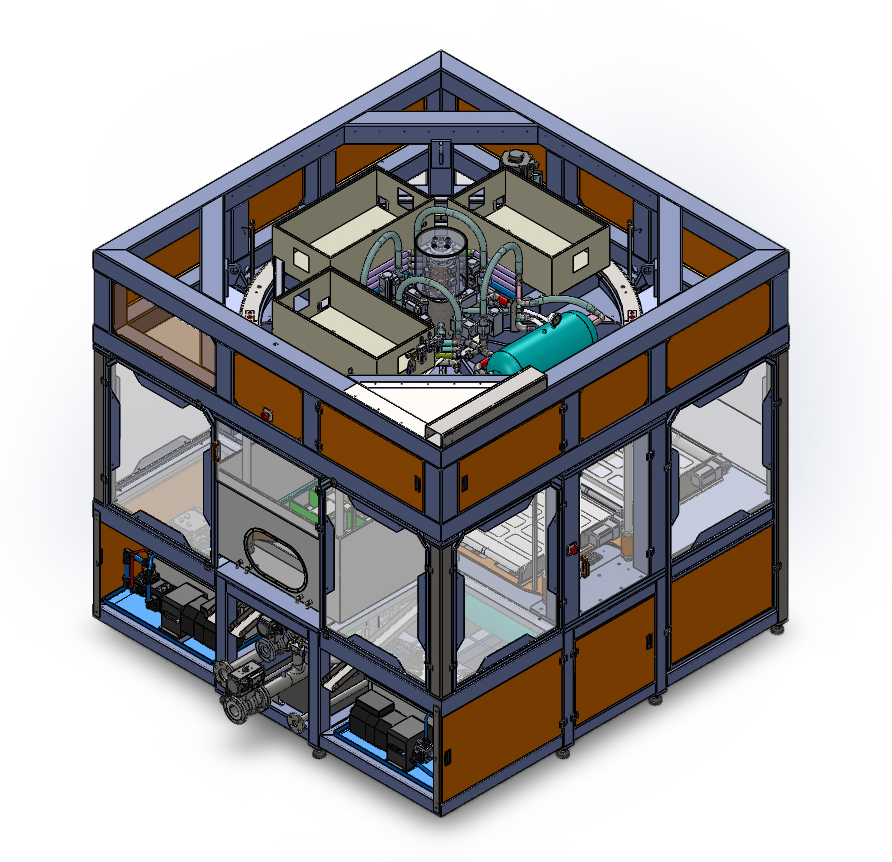

  Circular Thermoforming Machine (3-step) 600mm x 900mm (YL0609-R-3)


http://www.yulan.com.tw/SliderImgFolder/YL0609-R-3.jpg

download    Image
ModelYL0609-R-3
Size of Machine3000mm x 3000mm x 3000mm
Weight11,850kg
Size of Mold620mm x 900mm
Max Height of Formed Products170mm

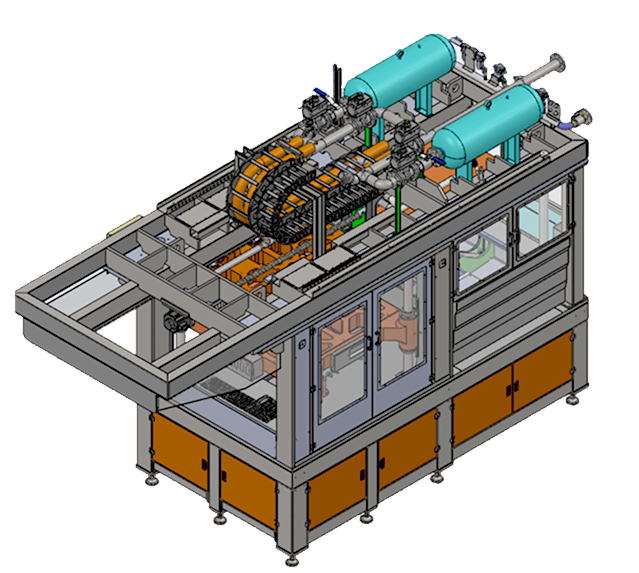

  Thermoforming Machine (2-step) 1300mm x 1400mm (YL1314-L-2)


http://www.yulan.com.tw/SliderImgFolder/2_YL1314-L-2.png

download    Image
ModelYL1314-L-2
Size of Machine5400mm x 2000mm x 3700mm
Weight17,920kg
Size of Mold1300mm x 1400mm
Max Height of Formed Products100mm (＞=10度)

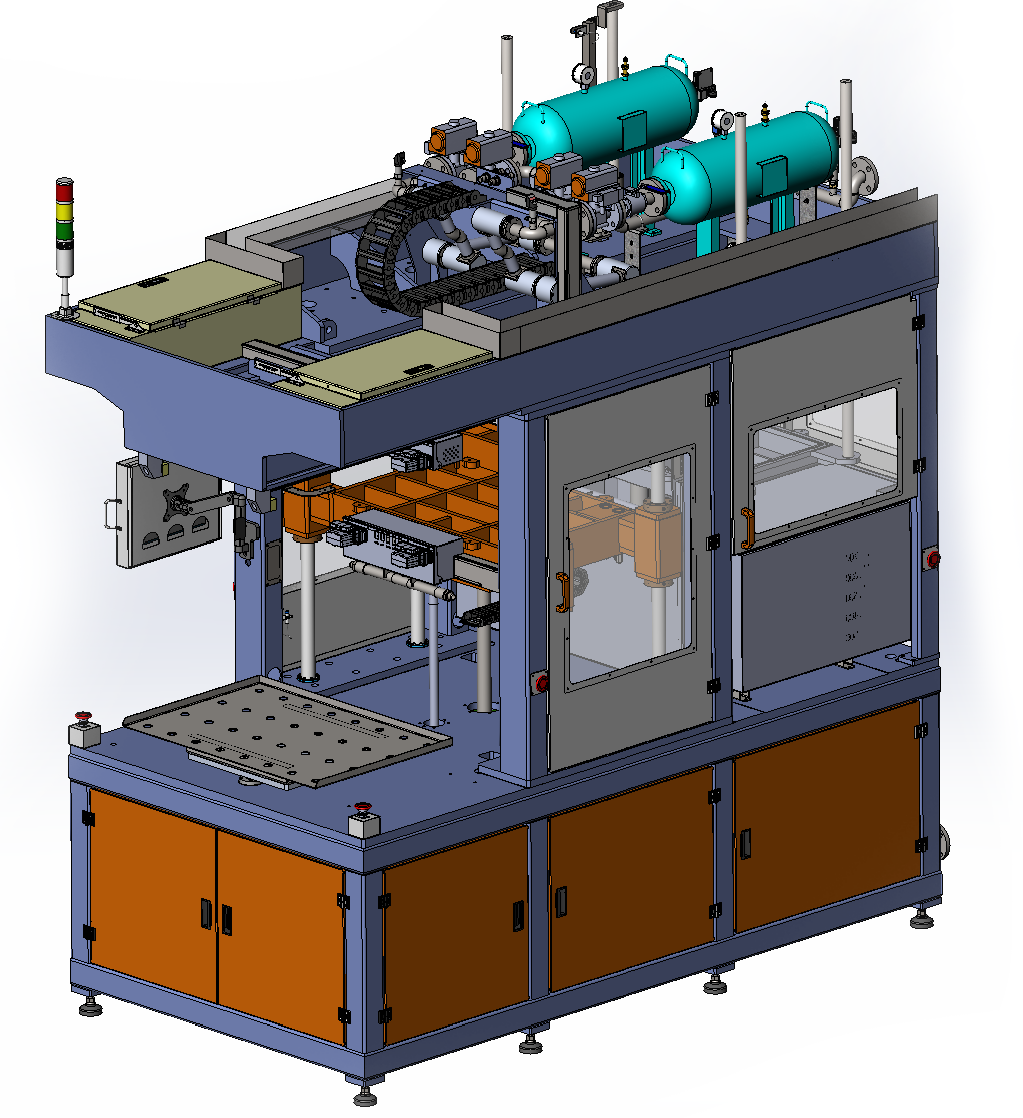

  Thermoforming Machine (2-step) 620mm x 900mm (YL0609-L-2)


http://www.yulan.com.tw/SliderImgFolder/2_YL0609-L-2-A.png

ModelYL0609-L-2
Size of Machine2900mm x 1550mm x 3100mm
Weight7,000kg
Size of Mold620mm x 900mm
Max Height of Formed Products100mm (＞=10度)
